这里给大家分享我在OpenLayers地图开发工作中总结出的一下代码和注意点,希望对大家有所帮助

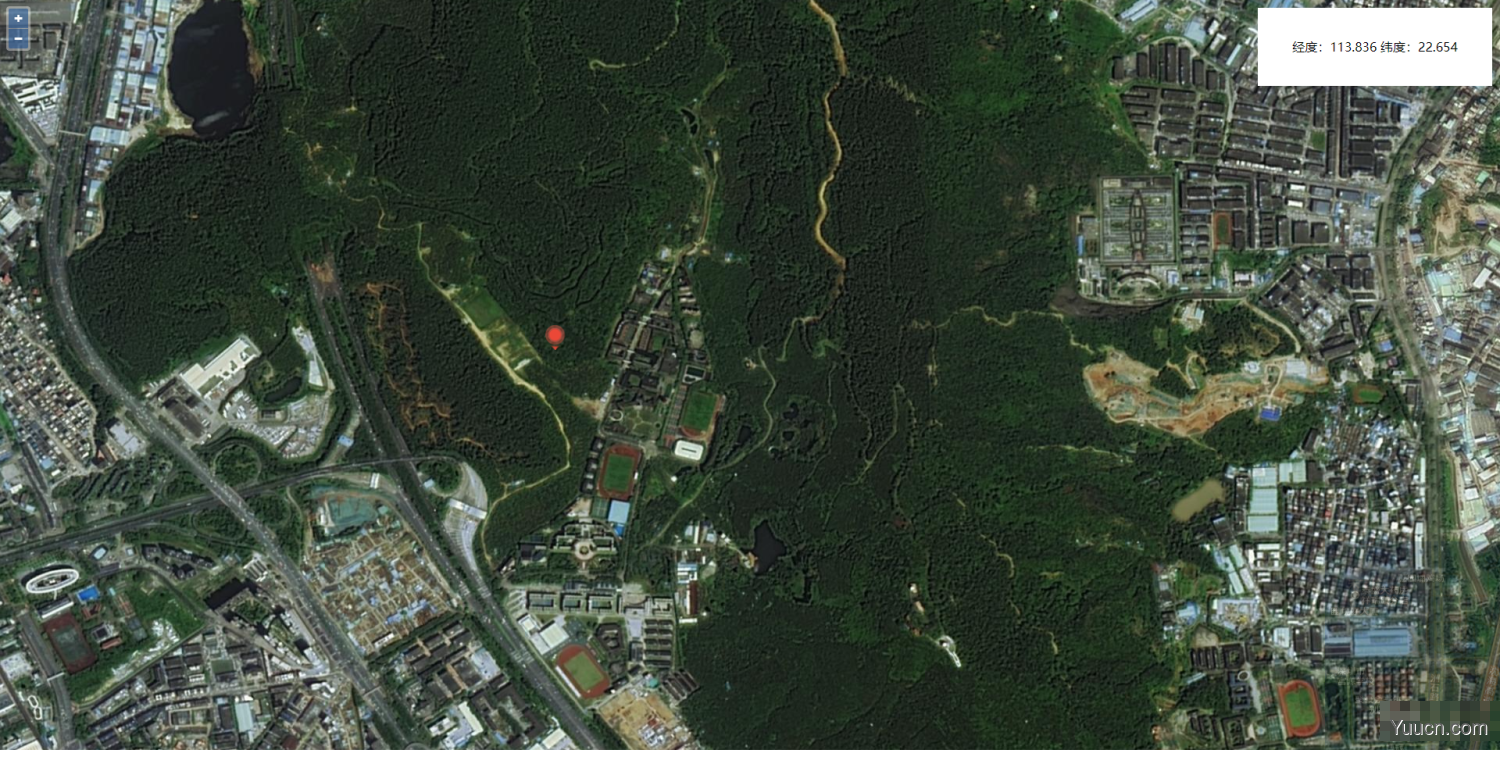

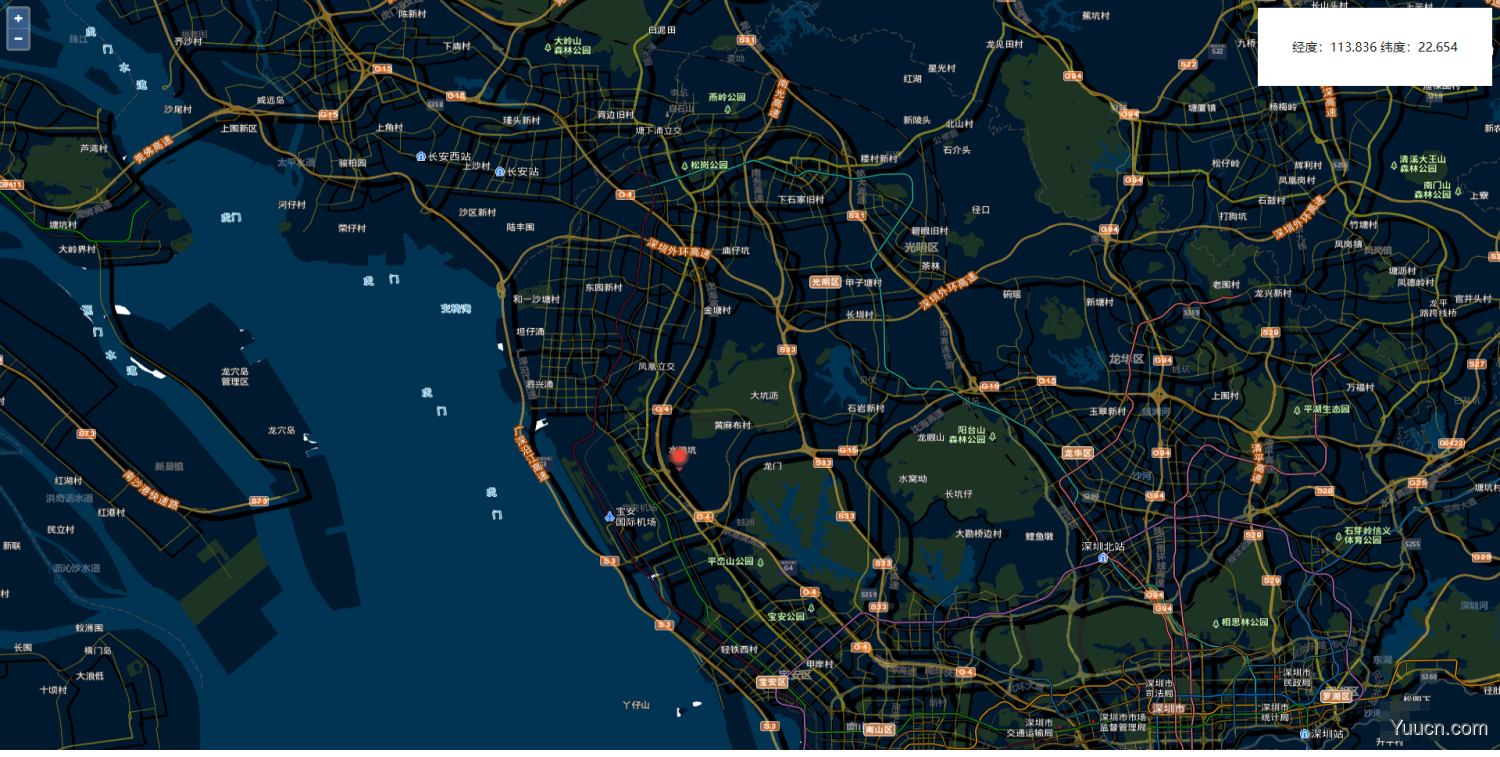

效果如下:
核心代码展示:附带讲解注释
var map = new ol.Map({ // 初始化地图 target: 'map',// 选择地图对象 layers: [ new ol.layer.Tile({// 初始化Tile外部图层 source: new ol.source.XYZ({// 初始化XYZ切片服务图层 url: 'n function createLabelStyle(feature) { return new ol.style.Style({ image: new ol.style.Icon({ anchor: [40, 42], scale: 0.5, // 图标缩小显示 anchorOrigin: 'top-right', // 标注样式的起点位置 anchorXUnits: 'pixels', // X方向单位:分数 anchorYUnits: 'pixels', // Y方向单位:像素 offsetOrigin: 'bottom-left', // 偏移起点位置的方向 opacity: 1, // 透明度 src: 'dian.png' //图标的URL }), text: new ol.style.Text({ textAlign: 'center', //位置 textBaseline: 'middle', //基准线 font: 'normal 14px 微软雅黑', //文字样式 fill: new ol.style.Fill({ //文本填充样式(即文字颜色) color: '#000' }), stroke: new ol.style.Stroke({ color: '#F00', width: 2 }) }) }); } var newFeature = new ol.Feature({ geometry: new ol.geom.Point([0,0]) //几何信息 }); newFeature.setStyle(createLabelStyle(newFeature)); //设置要素样式 vectorSource.addFeature(newFeature); map.on('click', function (evt) { var coordinate = evt.coordinate; //鼠标单击点的坐标 //新建一个要素ol.Feature newFeature.set('geometry',new ol.geom.Point(coordinate)) document.getElementsByClassName("list-box")[0].innerHTML = '<p> 经度:' + coordinate[0].toFixed(3) + ' 纬度:' + coordinate[1].toFixed(3) + '</p>' }); map.on('moveend', function (evt) { if (map.getView().getZoom() >= 16) { BGLayer.setVisible(true) } else { BGLayer.setVisible(false) } })
点位图片:
完整demo代码:
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <link rel="stylesheet" href="https://openlayers.org/en/v5.3.0/css/ol.css" /> <script type="text/javascript" src="https://openlayers.org/en/v5.3.0/build/ol.js"></script> <title>点击出点位</title> <style> *{padding: 0;margin: 0} .list-box { width: 300px; height: 100px; background: white; box-sizing: border-box; padding: 20px; line-height: 60px; overflow: auto; position: fixed; right: 10px; top: 10px; z-index: 999; text-align: center; } </style> </head> <body> <div id="map"></div> <div class="list-box"> </div> <script> var map = new ol.Map({ // 初始化地图 target: 'map',// 选择地图对象 layers: [ new ol.layer.Tile({// 初始化Tile外部图层 source: new ol.source.XYZ({// 初始化XYZ切片服务图层 url: 'n function createLabelStyle(feature) { return new ol.style.Style({ image: new ol.style.Icon({ anchor: [40, 42], scale: 0.5, // 图标缩小显示 anchorOrigin: 'top-right', // 标注样式的起点位置 anchorXUnits: 'pixels', // X方向单位:分数 anchorYUnits: 'pixels', // Y方向单位:像素 offsetOrigin: 'bottom-left', // 偏移起点位置的方向 opacity: 1, // 透明度 src: 'dian.png' //图标的URL }), text: new ol.style.Text({ textAlign: 'center', //位置 textBaseline: 'middle', //基准线 font: 'normal 14px 微软雅黑', //文字样式 fill: new ol.style.Fill({ //文本填充样式(即文字颜色) color: '#000' }), stroke: new ol.style.Stroke({ color: '#F00', width: 2 }) }) }); } var newFeature = new ol.Feature({ geometry: new ol.geom.Point([0,0]) //几何信息 }); newFeature.setStyle(createLabelStyle(newFeature)); //设置要素样式 vectorSource.addFeature(newFeature); map.on('click', function (evt) { var coordinate = evt.coordinate; //鼠标单击点的坐标 //新建一个要素ol.Feature newFeature.set('geometry',new ol.geom.Point(coordinate)) document.getElementsByClassName("list-box")[0].innerHTML = '<p> 经度:' + coordinate[0].toFixed(3) + ' 纬度:' + coordinate[1].toFixed(3) + '</p>' }); map.on('moveend', function (evt) { if (map.getView().getZoom() >= 16) { BGLayer.setVisible(true) } else { BGLayer.setVisible(false) } }) </script> </body> </html>
如果对您有所帮助,欢迎您点个关注,我会定时更新技术文档,大家一起讨论学习,一起进步。
